RAMBUS
MEMORY MODULES
|

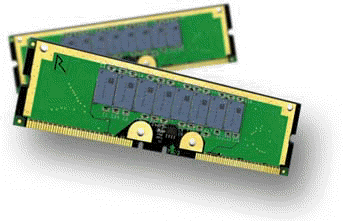

RIMM MODULE
The Direct Rambus™ RIMM™ Module is a
high-performance plug-in memory module for PC
main memory |

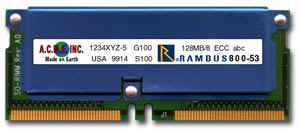

SORIMM MODULE
Twice the bandwidth and less power than
today's mobile memory system |
Rambus 800MHz Memory
Module Features:
- 1.6 Gigabyte/sec data
transfer rate
- Separate control and data
buses for maximized efficiency
- Separate row and column
control buses for easy scheduling and highest performance.
- 16 banks for each device:
four transactions can take place simultaneously at full bandwidth data
rates.
Low Latency
- Write buffer to reduce
read latency
- Three precharges
mechanisms for controller flexibility - Interleaved transactions
Advanced Power
Management
- Multiple low power sates
allows flexibility in power consumption versus time to transition to active
state.
- Power-down self-refresh
Device Organization
- 1Kbyte pages and 16 banks,
x16/x18
- x 16 organization: For
desktop PC application
- x 18 organization: Allows
ECC configuration or increased storage/bandwidth.
SPD (Serial Presence
Detect) support
- Provide initialization
information to the system processor on Power-up.
Helpful
Information:
A RIMM™ module is a
memory module consisting of eight to sixteen RDRAM® devices assembled on a
specified PCB. Commercially available Rambus-based PCs, Workstations and Servers
are equipped with RIMM modules.
RIMM modules are available
in various memory densities including, 64MB, 128MB or 256MB of memory. Two RIMM
modules can be used for 512MB of memory in the system.
RIMM Modules are available
in three speed grades - 600MHz, 700MHz or 800MHz. Modules of different speed
grades can be combined in the same system, but the memory system will operate at
the speed of the slowest module.
RIMM modules are available
with ECC (Error Checking and Correction) support; lower cost, non-ECC RIMM
modules are also available.
This excerpt is taken
from rambus Website.
|
Rambus
184 PIN RIMM 800Mhz NON-ECC
|
Price |
|
128MB Rambus RIMM Module
|
$369.00 |
|
Rambus
184 PIN RIMM 800Mhz With ECC
|
Price |
|
64MB Rambus RIMM Module
With ECC
|
$249.00 |
|
128MB Rambus RIMM Module
With ECC
|
$489.00 |
|
256MB Rambus RIMM Module
With ECC
|
$799.00 |
|
WE GUARANTEE
NO DOA .
WE TEST / BURN-IN EVERY MEMORY MODULE FOR A PERIOD OF AT LEAST 24 HOURS
PRIOR TO SHIPMENT.
WE ONLY USE MAJOR BRAND CHIPS SUCH
AS:
NEC, TI, SIEMENS, HYUNDAI, TOSHIBA, MITSUBISHI, GOLDSTAR, MICRON,
SAMSUNG...
WE DO NOT CARRY GENERIC and/or NO NAME BRAND. |
|
 1GB
PC-133 168PIN SDRAM
BRAND NEW
1GB PC-133 Sdram 128MX72 Registered DIMM
-
168Pin DIMM SDRAM, PC133, CL=3 , Registered , ECC ,
7.5ns , 3.3V , 128Meg x 72
$2,299.00
|
Prices are for reference purposes only and are subject to change without notice.
X86Systems is not to be held responsible for any errors or
discrepancies.
|
